FloorFlex Components

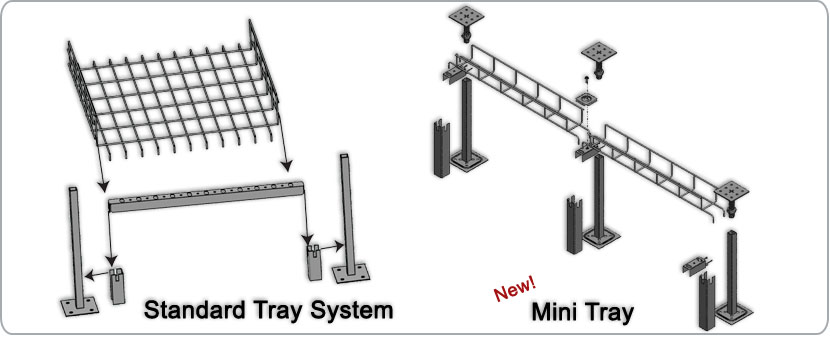

We offer a complete range of products and sizes to match your cabling needs. First, select a tray size. A horizontal fitting flat wilaccommodate any crosses in your pathway or 90 degree turns in your tray layout. Next, select your horizontal support bar to match the tray width. Finally, select a vertical support size to determine the height you want your tray to rise above the slab. There you have it, a custom system. It's that easy.Should your cabling require a two or three level system, ACT also offers multi-level tray systems.
Floor Trays
Available in 24" and 48" Length Models. Sides 2", 4", and 6" heights. Widths 6", 12", and 24"
Part Numbers
- FT2X6X24 - 2" Deep, 6" Wide, 24" long
- FT2X6X48 - 2" Deep, 6" Wide, 48" long
- FT4X6X24 - 4" Deep, 6" Wide, 24" long
- FT4X6X48 - 4" Deep, 6" Wide, 48" long
- FT6X6X24 - 6" Deep, 6" Wide, 24" long
- FT6X6X48 - 6" Deep, 6" Wide, 48" long
- FT2X12X24 - 2" Deep, 12" Wide, 24" long
- FT2X12X48 - 2" Deep, 12" Wide, 48" long
- FT4X12X24 - 4" Deep, 12" Wide, 24" long
- FT4X12X48 - 4" Deep, 12" Wide, 48" long
- FT6X12X24 - 6" Deep, 12" Wide, 24" long
- FT6X12X48 - 6" Deep, 12" Wide, 48" long
- FT2X24X24 - 2" Deep, 24" Wide, 24" long
- FT2X24X48 - 2" Deep, 24" Wide, 48" long
- FT4X24X24 - 4" Deep, 24" Wide, 24" long
- FT4X24X48 - 4" Deep, 24" Wide, 48" long
- FT6X24X24 - 6" Deep, 24" Wide, 24" long
- FT6X24X48 - 6" Deep, 24" Wide, 48" long
Horizontal Fitting Flat
This Tray allows easy transition through T's, elbows and crosses in your pathway.
Part Numbers
- FTINT - 24" x 24" Flat Tray
Horizontal Support Bars
Part Numbers
- HS06 - 6" Horizontal Support
- HS12 - 12" Horizontal Support
- HS24 - 24" Horizontal Support
- HS24S - 24" Horizontal Support Seismic
Vertical Supports
Part Numbers
All Sizes Available to Match Seismic Pedestals Add prefix S for Seismic
- VS02 - 2" Vertical Support
- VS03 - 3" Vertical Support
- VS04 - 4" Vertical Support
- VS08 - 8" Vertical Support
- VS10 - 10" Vertical Support
- VS12 - 12" Vertical Support
- VS14 - 14" Vertical Support
- VS16 - 16" Vertical Support
- VS18 - 18" Vertical Support
- VS20 - 20" Vertical Support
- VS24 - 24" Vertical Support
- VS30 - 30" Vertical Support

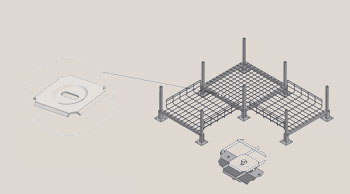

Ground Splice Clip
Use Ground Splice Clip to Fasten Trays and Provide Electrical Continuity.
Part Numbers
- GRDCLIP - Ground Clip/Fastener
(Bags of 50 each)
Vertical Support Retaining Clip
Part Numbers
- VSRC - Lock Vertical Support to Access Floor Pedestal (Bags of 50 each)
Multi-Level Brackets (2 level Tray System)
Use brackets to achieve multi-level tray systems.
• Available in heights of 4", 8" and 12".
• Available to accommodate tray widths of 6" and 12".
Part Numbers
- ML4X6 - 4" High Multi Level Bracket,
6" Wide Tray - ML8X6 - 8" High Multi Level Bracket,
6" Wide Tray - ML12X6 - 12" High Multi Level Bracket,
6" Wide Tray
- ML4X12 - 4" High Multi Level Bracket,
12" Wide Tray - ML8X12 - 8" High Multi Level Bracket,
12" Wide Tray - ML12X12 - 12" High Multi Level Bracket,
12" Wide Tray
Multi-Level Brackets (3 Level Tray System)
Use brackets to achieve multi-level tray systems.
• Available in heights of 4" to 8".
• Available in widths of 6" and 12".
Part Numbers
- MLT4X6 - 4" High Multi Level Bracket,
6" Wide Tray - MLT4X12 - 4" High Multi Level Bracket,
12" Wide Tray
- MLT8X6 - 8" High Multi Level Bracket,
6" Wide Tray - MLT8X12 - 8" High Multi Level Bracket,
12" Wide Tray
Light Duty "Mini Tray" System
An economical tray system perfect for light duty General Office applications.
Part Numbers
- HSMBT - One piece horizontal bar and retaining clip
- FT2X2.5X24 - 2" Deep, 2.5" Wide,
24" Long, General Office Mini Tray - FT2X2.5X48 - 2" Deep, 2.5" Wide,
48" Long, General Office Mini Tray
Vertical Extension
Used to make 24" width multi-level tray systems.
Part Numbers
- AFVX - 4" High
- AFVX - 6" High
- AFVX - 8" High
Cable Tray Divider
Used to separate cable bundles within a selected tray width.
Part Numbers
- CTD242 - 24" Long, 2" High
- CTD244 - 24" Long, 4" High
- CTD246 - 24" Long, 6" High
- CTD482 - 48" Long, 2" High
- CTD484 - 48" Long, 4" High
- CTD486 - 48" Long, 6" High
